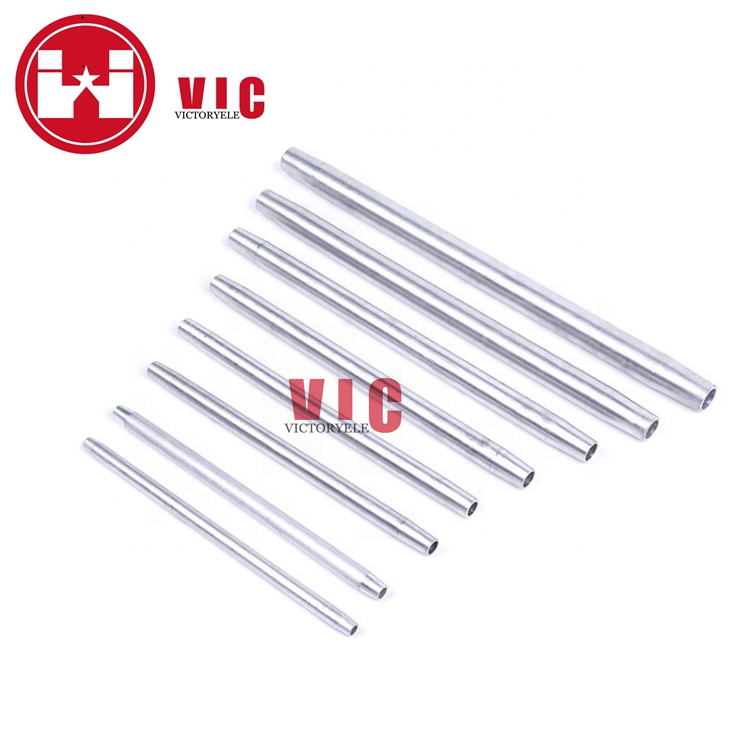

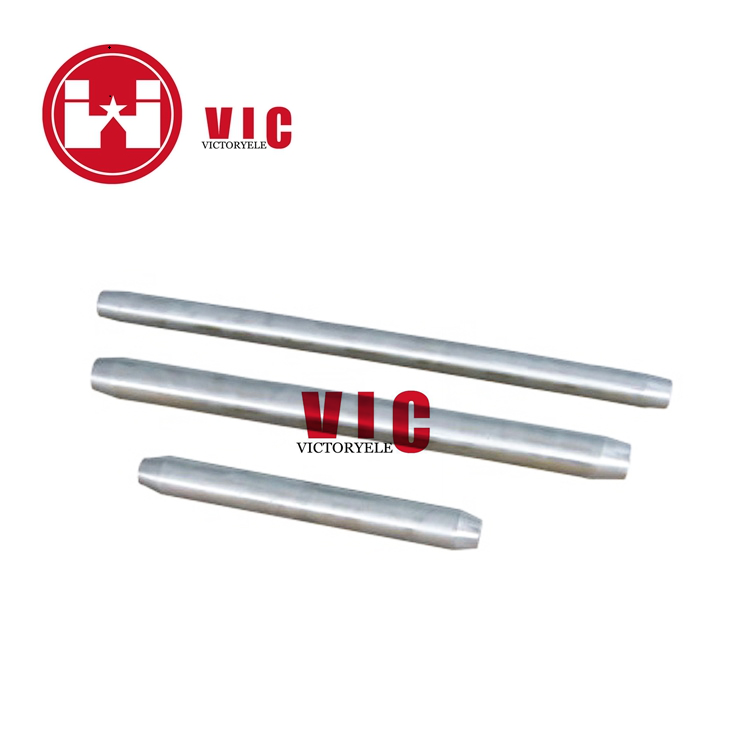

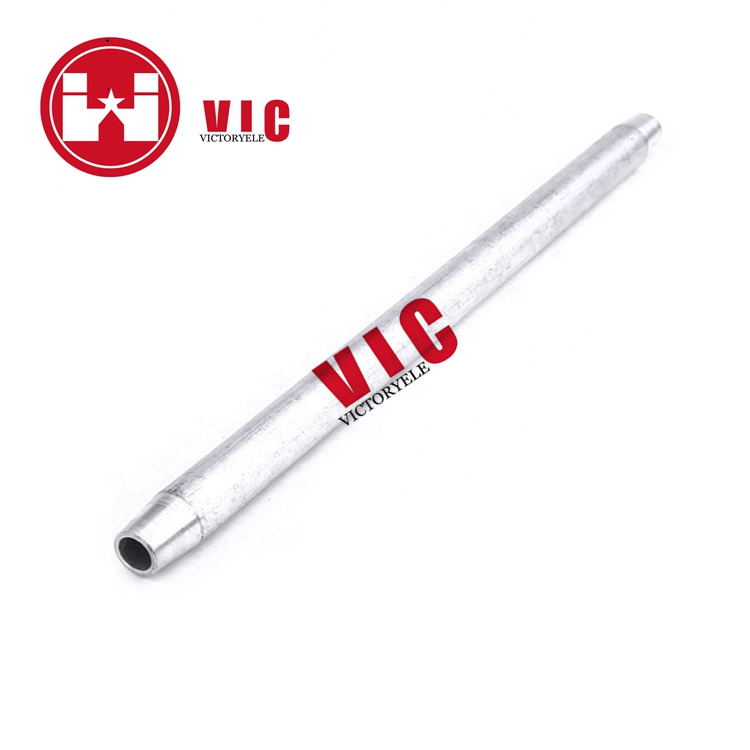

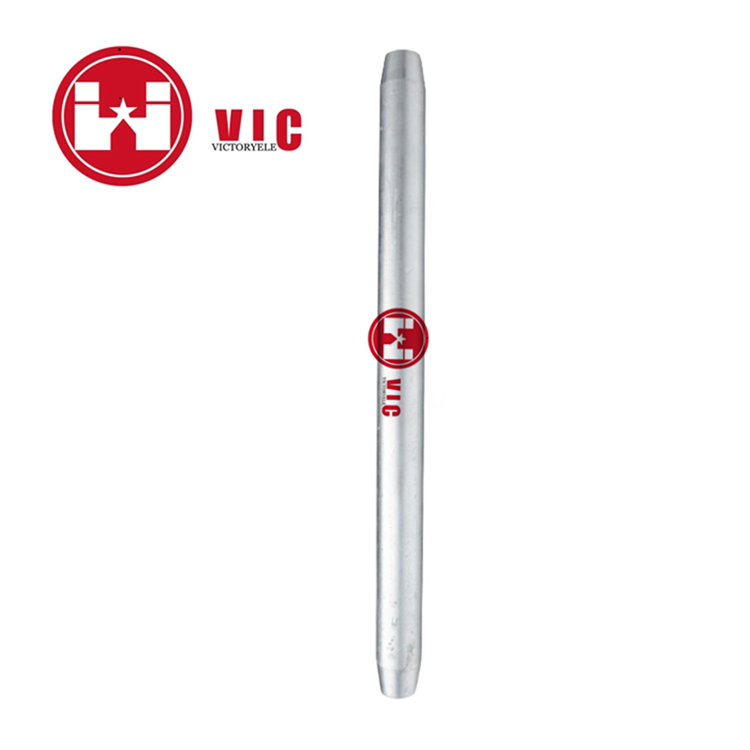

Manch splicing
Prezantasyon
Splicing manch rad pou JY, JBD, JYD, liy izolasyon ayeryen
Manch enteryè yo se cho-tranpe galvanised, manch rad la deyò ak manch pawa yo aliminyòm.
Done teknik
|
Tipe |
Kondiktè aplikab |
Dimansyon (mm) |
Grip fòs pi gran pase oswa egal a (kg) |
||||||
|
Tipe |
D |
d |
L |
L1 |
F |
Φ1 |
Φ2 |
||
|
Jy -35/6 |
Lgj -35/6 |
18 |
8 |
320 |
90 |
15 |
9.5 |
3.5 |
10 |
|
Jy -50/8 |
Lgj -50/8 |
20 |
9 |
340 |
90 |
15 |
11 |
4 |
14 |
|
Jy -70/10 |
Lgj -70/10 |
22 |
10 |
360 |
110 |
15 |
13 |
4.6 |
20 |
|
Jy -95/15 |
Lgj95/15 |
26 |
14 |
400 |
150 |
15 |
15.5 |
5.7 |
32 |
|
Jy -120/20 |
Lgj -120/20 |
26 |
14 |
450 |
155 |
15 |
16.5 |
6.2 |
35 |
|
Jy -120/25 |
Lgj -120/25 |
26 |
14 |
460 |
160 |
15 |
17.5 |
7.2 |
40 |
|
Jy -150/20 |
Lgj -150/20 |
30 |
14 |
470 |
155 |
15 |
18.5 |
6.2 |
40 |
|
Jy -150/25 |
Lgj -150/25 |
30 |
14 |
480 |
160 |
15 |
18.5 |
7 |
44 |
|
Jy -185/25 |
Lgj -185/25 |
34 |
14 |
500 |
160 |
15 |
20.5 |
7 |
55 |
|
Jy -185/30 |
Lgj -185/30 |
34 |
14 |
530 |
190 |
15 |
20.5 |
7.6 |
60 |
|
Jy -240/30 |
Lgj -240/30 |
36 |
16 |
570 |
170 |
22 |
23 |
7.9 |
70 |
|
Jy -240/40 |
Lgj -240/40 |
36 |
16 |
590 |
190 |
22 |
23 |
8.7 |
80 |
|
Jy -240/55 |
Lgj -240/55 |
36 |
20 |
640 |
230 |
22 |
24 |
10.3 |
100 |
|
Jy -300/15 |
Lgj -300/15 |
40 |
14 |
560 |
120 |
24 |
24 |
5.7 |
65 |
|
Jy -300/20 |
Lgj -300/20 |
40 |
14 |
580 |
140 |
24 |
25 |
6.5 |
70 |
|
Jy -300/25 |
Lgj -300/25 |
40 |
14 |
600 |
160 |
24 |
25 |
7.3 |
80 |
|
Jy -300/40 |
Lgj -300/40 |
40 |
16 |
640 |
190 |
24 |
25.5 |
8.7 |
90 |
|
Jy -300/50 |
Lgj -300/50 |
40 |
18 |
660 |
210 |
24 |
26 |
9.6 |
100 |
|
Jy -300/70 |
Lgj -300/70 |
42 |
22 |
710 |
260 |
25 |
26.5 |
11.5 |
120 |
|
Jy -400/20 |
Lgj -400/20 |
45 |
14 |
580 |
140 |
27 |
28.5 |
6.5 |
85 |
|
Jy -400/25 |
Lgj -400/25 |
45 |
14 |
660 |
160 |
27 |
28.5 |
7.3 |
90 |
|
Jy -400/25 |
Lgj -400/25 |
45 |
16 |
680 |
180 |
27 |
28.5 |
8.2 |
100 |
|
Jy -400/35 |
Lgj -400/35 |
45 |
20 |
730 |
220 |
27 |
29.5 |
9.9 |
120 |
|
Jy -400/50 |
Lgj -400/50 |
48 |
22 |
760 |
250 |
29 |
29.5 |
11 |
130 |
|
Jy -400/65 |
Lgj -400/65 |
48 |
16 |
830 |
300 |
29 |
31 |
13.2 |
160 |
|
Jy -400/95 |
Lgj -400/95 |
52 |
16 |
740 |
180 |
30 |
31.5 |
8.2 |
110 |
|
Jy -500/35 |
Lgj -500/35 |
52 |
18 |
760 |
200 |
30 |
31.5 |
9.1 |
120 |
|
Jy -500/45 |
Lgj -500/45 |
52 |
22 |
820 |
250 |
30 |
32.5 |
10.3 |
150 |
|
Jy -500/65 |
Lgj -500/65 |
60 |
18 |
840 |
200 |
36 |
35.5 |
12.3 |
140 |
|
Jy -630/45 |
Lgj -630/45 |
60 |
20 |
880 |
230 |
36 |
36.5 |
10.3 |
155 |
|
Jy -630/55 |
Lgj -630/55 |
60 |
24 |
940 |
280 |
36 |
36.5 |
12.3 |
180 |
|
Jy -630/80 |
Lgj -630/80 |
65 |
20 |
950 |
230 |
39 |
40 |
10.3 |
180 |
|
Jy -800/55 |
Lgj -800/55 |
65 |
22 |
980 |
260 |
39 |
40.5 |
11.5 |
200 |
|
Jy -800/70 |
Lgj -800/70 |
65 |
26 |
1050 |
310 |
39 |
40.5 |
13.7 |
230 |
Atribi
- Non pwodwi: manch splicing
- Non mak: Vic
- Kote ki gen orijin: Zhejiang Pwovens, Lachin
- Dyamèt: gwosè estanda, Customized
- Materyèl: al/asye
- Koulè: tranch
- Kalite: manch splicing
- Karaktè: san danje epi ki estab
- Fonksyon: Koneksyon
- Aplikasyon: JY, JBD, JYD, liy izolasyon ayeryen
- Pò: Shanghai Port/Ningbo Port
- Detay anbalaj: ekspòtasyon anbalaj estanda
- Vann inite: yon sèl atik
- MOQ: 1000pcs
- Logo: Customized
- Sètifika: ISO
Sètifika
Faktori nou an
Vic faktori anvi yon zòn ki gen plis pase 66, 000 mèt kare, ki gen 5 atelye diferan ak fonksyon diferan. Faktori a gen plis pase 170 travayè, ki moun ki pwofesyonèl ak ki gen eksperyans yo, yo fè bon pwodwi ak bay bon sèvis.
Loading nou an
Vic travay ak anpil bon ajan lojistik ki pwofesyonèl ak ki gen eksperyans. Shipping pa peyi, lanmè oswa lè oswa nenpòt fason ou renmen, ajan nou yo ap kontinye bay bon sèvis ak bon pri.
Sou pwodwi a
Vic splicing manch rad gen anpil gwosè diferan pou ou pou w chwazi epi li gen bon jan kalite bon ak sèvis.
